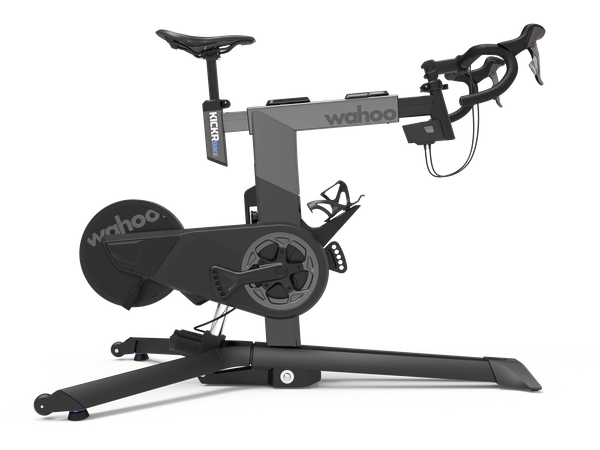

KICKR BIKE Pro (2025) Product Information & FAQ

KICKR BIKE Information and Setup

Download the Wahoo App


The Wahoo Fitness app keeps your BIKE up to date and leverages your smartphone to record basic workout information, delivering data-driven power that fuels your training and fitness goals. Get the app now to set up your KICKR BIKE and get cranking.

Design Specifications

  • Part Number: WFBIKE4
  • Shipping Dimensions: 54" x 14" x 35" (135 x 34 x 88 cm)
  • Weight: 93 lbs (42 kg)
  • Power Requirements: 100-240V, 50/60 Hz, 2.5A Max
  • Drivetrain: Belt Drive
  • Resistance Type: Electromagnetic and Enhanced Motor
  • Accuracy: + / - 1%
  • Maximum Simulated Grade: 20%
  • Minimum Simulated Grade: -15%
  • Maximum Power Output: 2500 Watts
  • BLE and Wi-Fi Software Updates: Yes
  • KICKR HEADWIND Compatible: Yes

Compatibility

User

  • User Height Range: 5 feet (152 cm) to 6 feet 4 inches (193 cm)
  • Max User Weight: 250 lbs (113 kg)
  • Crank Arm Lengths: 165, 167.5, 170, 172.5,175

Connectivity

  • Bluetooth Low Energy (BLE) 4.2
    • FTMS - power, speed, cadence, and control
    • CPS - power, speed, and cadence
  • ANT+
    • FE-C - power, speed, cadence, and control
    • PWR - power, speed, and cadence
  • Wi-Fi
    • 2.4 GHz, channels 1-11
  • Direct Connect

Device

  • Minimum maintenance and use of the KICKR BIKE PRO requires a device capable of connecting to the KICKR BIKE PRO via the Bluetooth low energy (BLE) 4.0 or higher protocol and of running the Wahoo app.  See the Wahoo app in Apple or Google Play stores for current minimum device operating system requirements of the Wahoo App.
  • Compatibility with other devices or apps is dependent on the connectivity/minimum operating system requirements of the desired app.

Third party apps

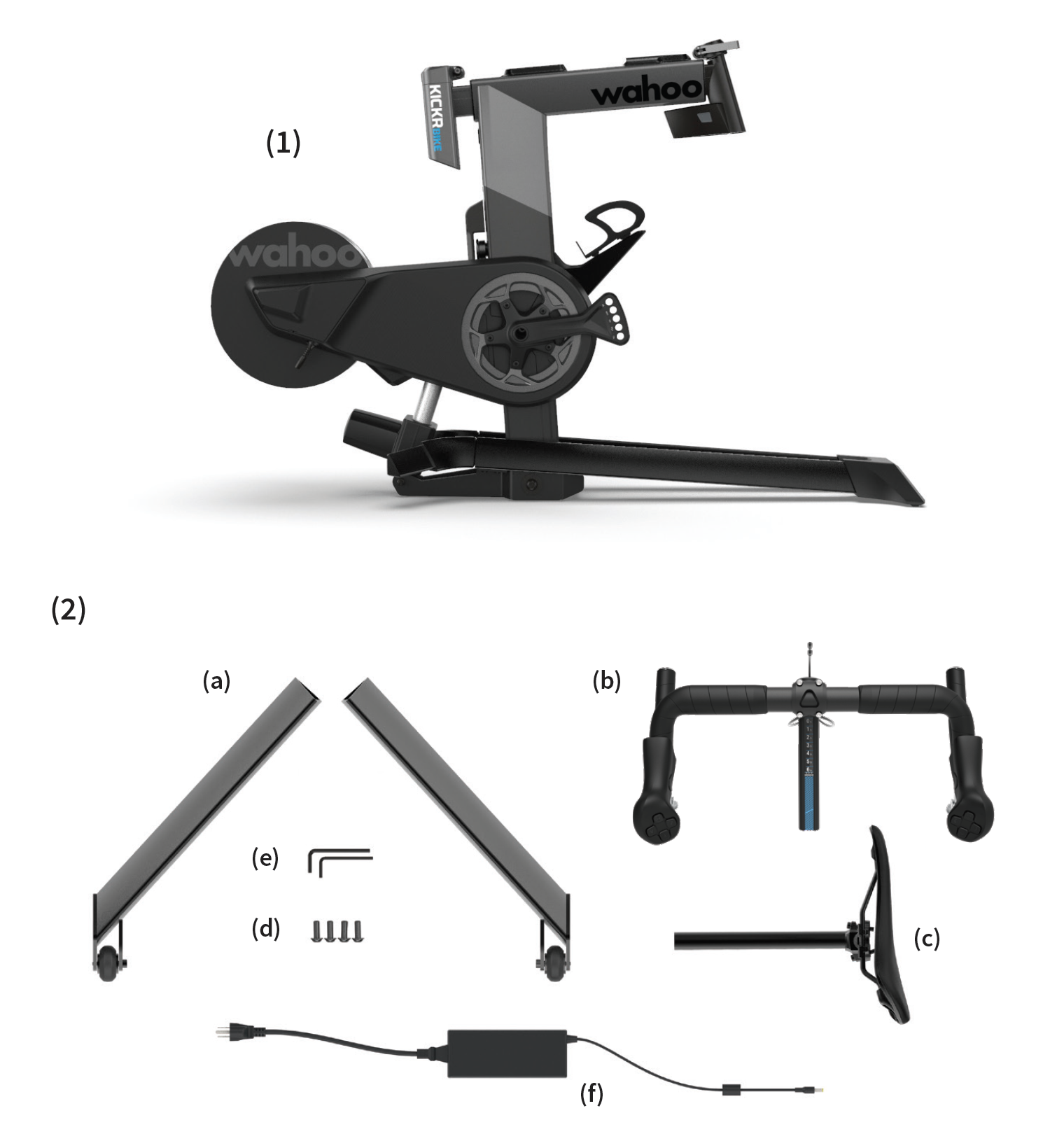

In The Box

  1. KICKR BIKE PRO main assembly
  2. ACCESSORY BOX
    1. Rear stabilizer legs (x2)
    2. Handlebar assembly
    3. Seatpost assembly
    4. 5mm hex bolts (x4)
    5. Hex wrenches (4 and 5mm)
    6. AC power adapter with cord(s) by region

Caution: use of third party power adapters not supplied by Wahoo Fitness may cause permanent damage to KICKR BIKE.

Features

New Features

Updated shifter design and expanded support for Zwift app controls

  • New Zwift-Play-style shifters continue to support major drivetrain manufacturer shifter simulation while also fully supporting the native Zwift control interface.

Touch point improvements

  • Flared handlebar
    • Top center to center – 40 cm
    • Drops center to center – 46 cm
    • Reach – 95 mm
    • Drop – 140 mm
    • Flare – 16*
  • Fizik Vento Solocush Tacky 2.7mm bar tape
  • Fizik Tempo Aliante OEM saddle
    • Width – 150 mm
    • Length – 277 mm

Core Features

  • Accurate power measurement of +/- 1% with up to 2500W of resistance.
    • Reported - Power, Speed, Distance and Cadence
      • Measured - Power and Cadence
      • Simulated - Speed and Distance
  • Customized fit, shifting and gearing to match your outdoor bike
    • Shimano, SRAM, and Campagnolo road shifter configurations
    • 9-13 speed gearing configurations
  • Real-time physical grade changes for immersive and realistic rides.
  • Virtually silent operation
  • Control with the Wahoo app
  • Control with an ELEMNT computer
  • Third party app control

Setup

FAQ

How much space does a KICKR BIKE occupy when fully extended?

Do I need to spindown or calibrate the KICKR BIKE PRO?

Why isn't my KICKR BIKE PRO level at zero tilt?

Troubleshooting

For steps to troubleshoot common concerns, see
