Pair a TRACKR RADAR
-
Power on the TRACKR RADAR unit.

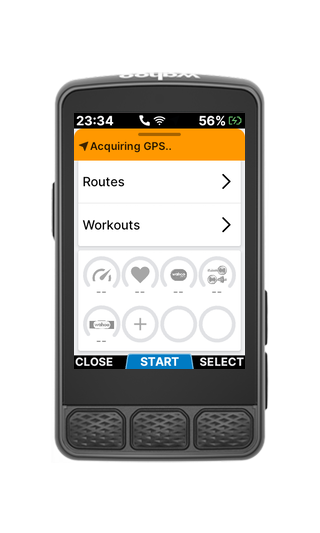

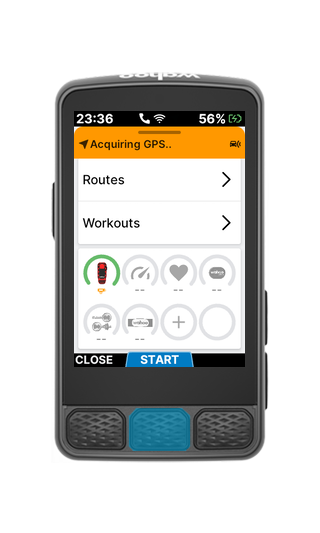

- Add a new sensor from the from the Ready to Ride dashboard or the Sensors page.

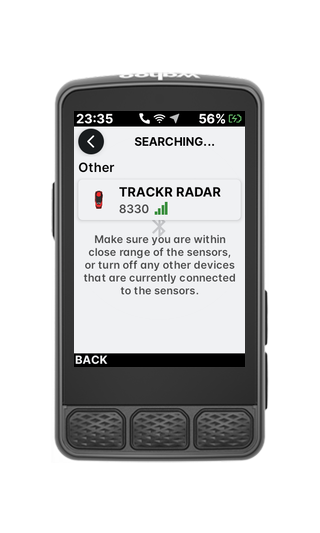

- If the ELEMNT does not prompt you to the TRACKR RADAR, scroll down in the available sensors list. If there are a large number of sensors available, the sensor list will be divided by sensor type. Radar units will appear under Other at the bottom of the list.

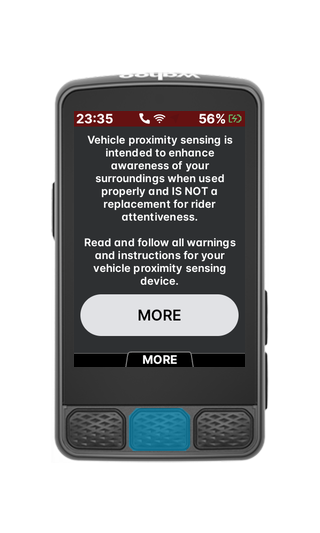

- Read and accept the safety warning statement.

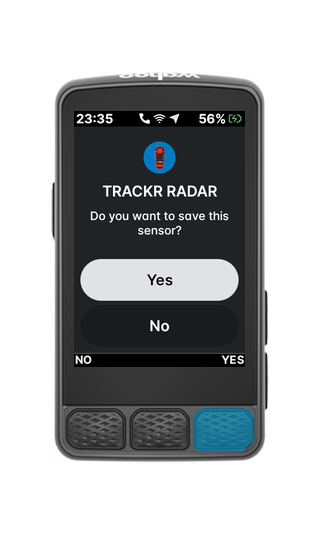

- The TRACKR RADAR is paired.
TRACKR RADAR Settings
Once your TRACKR RADAR is paired, additional settings (including mute) may be accessed by selecting the sensor from the Ready to Ride dashboard or the Sensors page.
On the computer
Connection / Battery status
The TRACKR RADAR will show as connected or not, and provide a battery level.
- Good - battery > 20%
- Low - battery < 20%

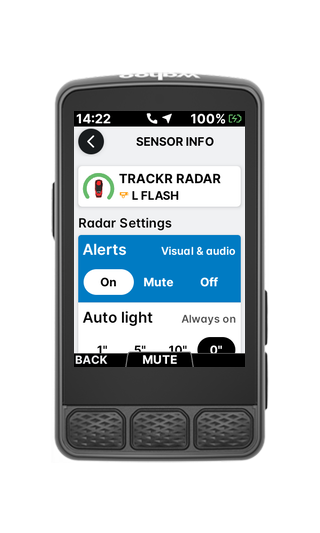

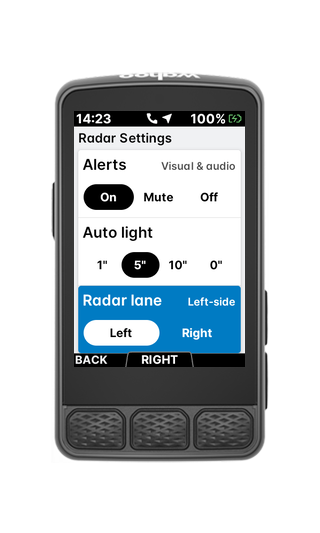

Alerts
Visual and audio alerts from the radar on the computer can be controlled independently
- ON - The radar will produce visual and audio alerts on the computer.
- MUTE - Visual alerts (radar lane and color changing status bar) are ON, but audio alerts are muted / OFF.
- OFF - Visual alerts and audio alerts on the computer are OFF.
Radar Lane
The location of the radar lane can be moved from the left to the right side of the display.

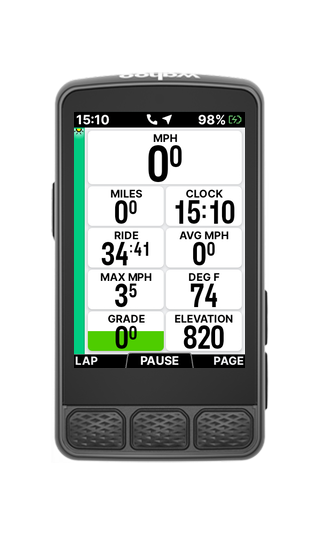

- LEFT - Radar lane / car track appears on the left side of display

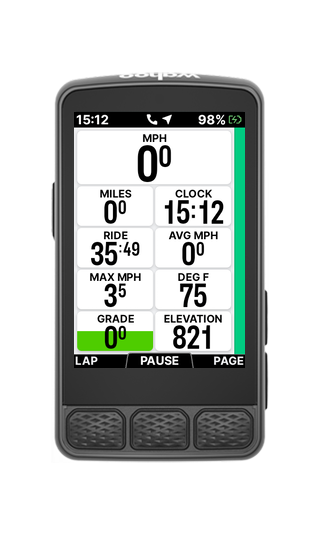

- RIGHT - Radar lane / car track appears on the right side of display

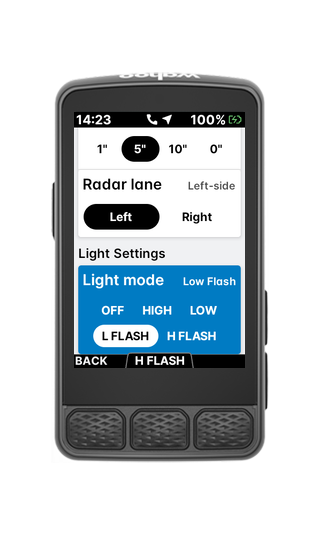

Light Mode
The four light modes can be manually selected and the light can be turned off completely.
- Off
- High steady
- Low steady
- Low Flash
- High Flash

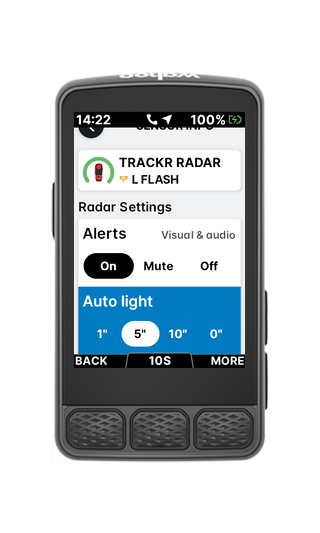

Auto light
If enabled, the TRACKR RADAR will flash asymmetrically when a car is approaching, and continue to do so for the period of time selected (1, 5, or 10 seconds) and then return to the selected light mode variety. If disabled, the currently selected light mode will perform as defined by the light mode.
- OFF - Light mode performs as selected
- 1S - Light flashes as car is approaching + 1 second
- 5S - Light flashes as car is approaching + 5 seconds
- 10S - Light flashes as car is approaching + 10 seconds
Bike Lights

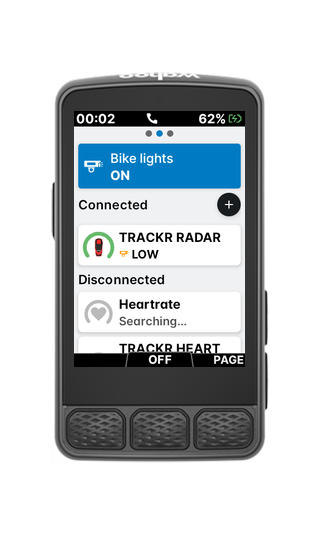

From the Sensors page, one step out from the TRACKR RADAR sensor page, (not accessible from the Ready to Ride dashboard), you can manually turn off all ANT+ smart lights connected to the computer.
In the Wahoo app

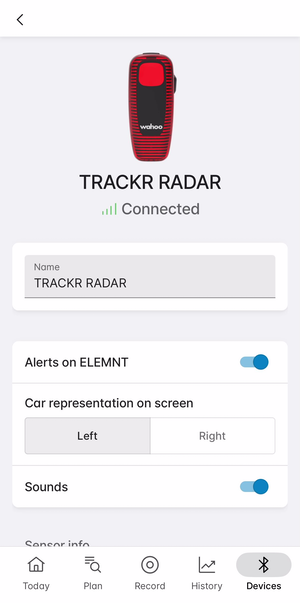

In the Wahoo app > Devices tab > ComputerName > TRACKR RADAR sensor page, you can Mute or toggle off radar alerts on the computer entirely and select the side of the screen for the 'car representation' (radar lane). This duplicates the Alerts and Radar Lane settings on the computer described above.
Radar experience

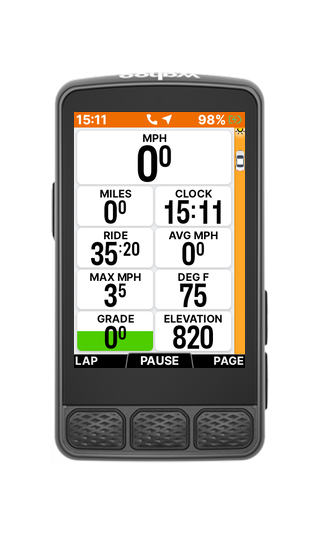

As discussed above, the radar lane can be placed on either side of the computer's display. Vehicles will appear at the bottom of the screen as they are sensed and proceed upward toward the top of the display, indicating their approach to the rider. As the vehicle appears on screen, the rider will be alerted by a change of radar lane color from green to orange or red, depending on the speed with which the vehicle is approaching. Additionally, the status bar at the top of the computer will also flash the same color as the radar lane and the
If the taillight is on, a small yellow light icon will appear at the top of the radar lane. If it is off, the icon is absent.
Smart light experience
Remote manual light control
As described above, all lights connected to the computer can be turned on / off together from the Sensors page of the Settings pages.
Additionally, the TRACKR RADARs four light modes can be manually selected and the light can be turned off completely from the TRACKR RADAR's sensor page.
- Off
- High steady
- Low steady
- Low Flash
- High Flash
Auto on / off
Finally, once paired, provided the TRACKR RADAR has charge, it will automatically turn on when a ride is started on the computer, and turn off when the ride is ended.
Note, this is different from the Garmin convention that will turn the light on/off with the computer.
