ELEMNT GPS computer Pages

This article describes pages available on all ELEMNT GPS computers. For information on how to customize them, see Customize Pages on an ELEMNT GPS Computer.

Persistent pages

Ready to Ride (1, 2, Settings, System Info)

• Is the default screen at startup
• Provides access to
  • the paired sensors list, sensor details, and adding a new sensor

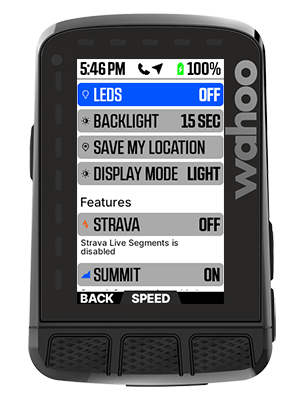

  • the device Settings menu, including
    • Backlight control
    • Display mode (light/dark mode)
    • Strava Live Segments toggle
    • Summit Climbing features toggle
  • the device's System Info, including
    • Device ID
    • Free HD space (for maps, primarily)
    • ROM/Firmware version
    • Serial Number (SN)

Workout Data

• The most basic data screen, can be customized with different data fields and copied
• Is accessed by pressing the power button once prior to ride start, or is the default page once a ride is started

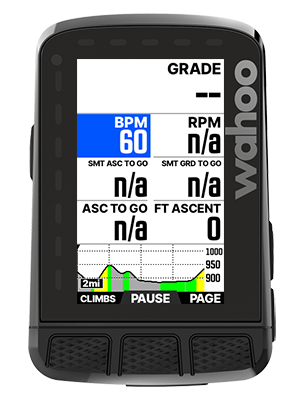

Elevation (Elevation, Climbs*)

• Is accessed by pressing the front right PAGE button
• Data fields can be customized
• Elevation profile cannot be modified or removed
• Can only appear once in the page stack

*Climbs page requires Summit Climbing features.

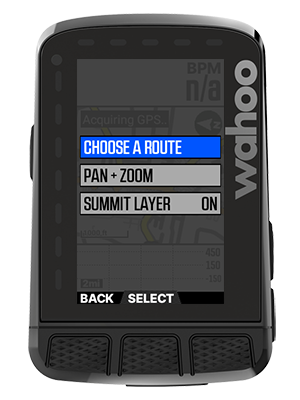

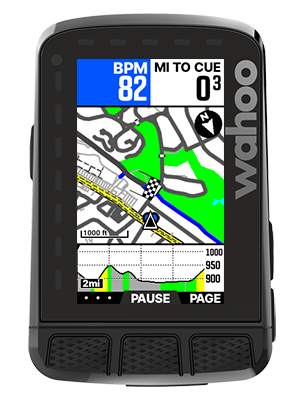

Map (Map, Routes menus)

• Is accessed by pressing the front right PAGE button
• Data fields can be customized
• Elevation profile can be added for ROAM v1/v2, but cannot be modfied
• Can only appear once in the page stack

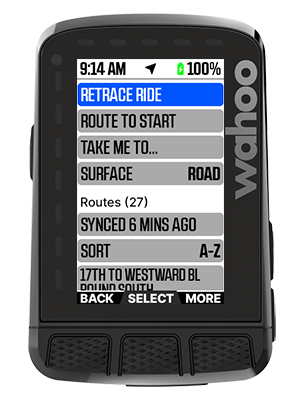

• ROUTES submenu accessed by pressing the front left button on the MAP page

Contextual pages

Lap data

• Appears after the lap button has been pressed or an auto-lap event occurs
• Data fields can be customized
• Can only appear once in the page stack

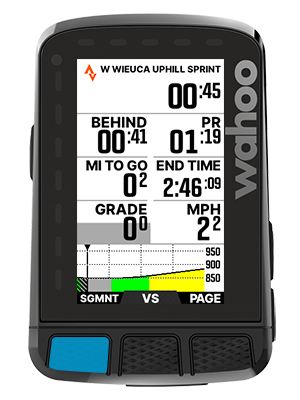

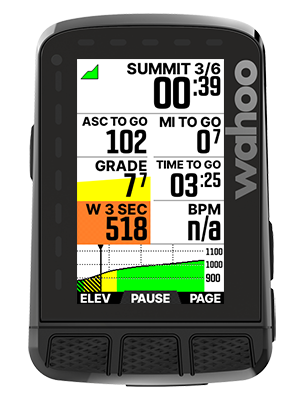

Summit Segments (Climbs, Summit Segments Live)*

• The Climbs page is accessed by pressing the front left button from the Elevation page in the page stack
• The Summit Segments page appears once you are on a climb recognized by the BOLT or ROAM

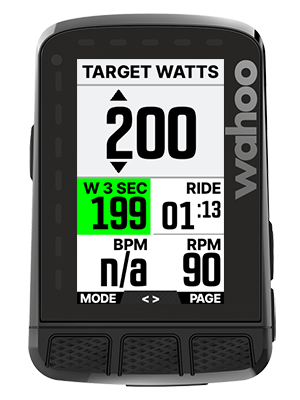

KICKR control

• Appears once the Location on the Ready to Ride / Menu page is set to Indoor and the computer is paired to an actively pedaled smart trainer
• Data fields (other than the primary field) can be customized

Planned workouts

• Appears when a planned/structured workout has been loaded
• Data fields (other than the workout progress bar) can be customized

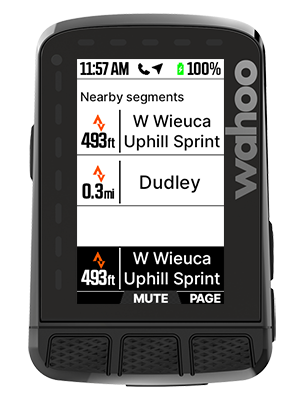

Strava Live Segments*

*requires a paid subscription to Strava

• Appears when segments saved in Strava are nearby / on route
• Data fields (other than the segment progress bar) can be customized

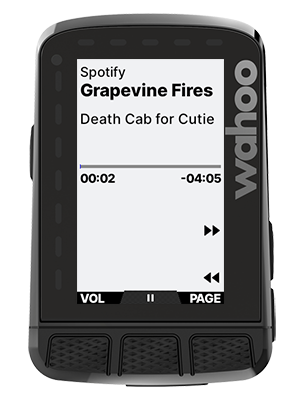

Media Control

• Appears when a compatible music/podcast app is open on a paired mobile device
• The page cannot be modified.

Page Structure

Customizable data fields

Most pages contain multiple customizable (moveable or replaceable) data fields, consisting of a small data type label and a data value.

If no data is available for that data field, either because

• there is no corresponding sensor connected to provide that data
  • ex. no Heart Rate data when a heart rate monitor is not paired), or
• the related function is not active
  • ex. no Distance Next Cue if you are not following a route)

the data field will show N/A.

For details on how to customize pages, see Customize Pages on an ELEMNT GPS Computer.

Non-customizable components

Some pages, like the Elevation and Map pages contain non-customizable components, like the elevation profile and map graphics. Each page offers at least two customizable data fields, but the layout and core component that defines that page cannot be changed, moved, or removed.

Additionally, any page other than the Workout data page cannot be duplicated. Custom pages are a duplicate of the primary workout data page.

Data field type options

Data fields exist for values related to the following concepts. For a complete list, follow the steps in Customize Pages on an ELEMNT GPS Computer to see the complete list in the ELEMNT app.

• Battery
  • ELEMNT computer and phone battery
• Body Temperature
  • requires a CORE body temp sensor
• Cadence
  • requires a cadence sensor or crank/pedal power meter
• Calories
  • requires power meter or heart rate monitor
• Climbing
  • includes fields related to Elevation and Summit Segments pages
• Distance
• E-Bike
  • requires a compatible LEV
• Gear selection
  • requires a compatible electronic drivetrain
• Heart rate
  • requires a heart rate monitor
• KICKR
  • requires a KICKR trainer
• Map
  • some fields require an active route loaded
• Muscle oxygen
  • requires a compatible muscle oxygen sensor
• Planned workouts
  • requires an active loaded planned workout
• Power
  • requires a power meter or KICKR trainer
  • some fields require a dual-sided or Pioneer power meter
• Route Target
  • requires a BestBikeSplit route loaded
• Speed
• Strava
  • Requires Strava Live Segments
• Time
• Tyre pressure
  • requires a TyreWhiz pressure sensor
• Weather (Temperature)
  • temperature data
• Workout
  • Lap related data
