Shifter and button configuration for KICKR BIKE SHIFT

KICKR BIKE SHIFT supports shifter configurations to match shifting and gearing options offered by Shimano, SRAM, and Campagnolo.  Multiple shifter and gearing configurations can be created, stored, and edited in the Wahoo app, and the last selected profile will remain in use on the BIKE SHIFT until overwritten.

Additionally, BIKE SHIFT has the capacity for some contextual app control. See Zwift controls for KICKR BIKEs / SHIFT.

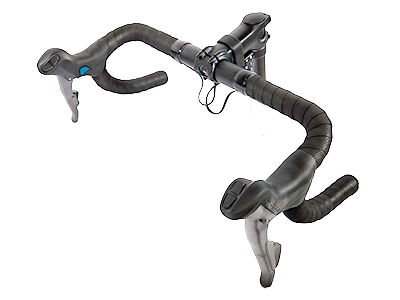

Button locations

KICKR BIKE SHIFT has a total of 10 buttons on the shifters in the cockpit, in addition to the brakes.

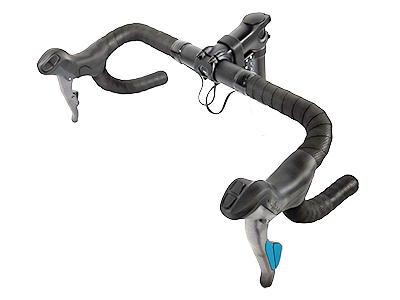

Two shifter buttons on the outside of each brake lever

Used for Shimano and SRAM shifting configurations.

One multi-use button on the inside of each shifter body

Used for shifting with a Campagnolo shifter configuration OR

Used for steering in Zwift (not compatible with the Campagnolo shifting profile.)

2 multi-use buttons on top of each shifter body

Left side

• App contextual buttons
  • in Zwift
    • Front: Select
    • Rear: Ride On Bomb

Right side

• App contextual buttons
  • in Zwift
    • Front: Power Up
    • Rear: U-Turn

Available shifter configurations

• Shimano
  • Di2/Mechanical
  • Di2 Synchro
• SRAM
  • eTap
  • Mechanical
• Campagnolo
  • Mechanical


Create a shifter profile

1.  Ensure the device running the Wahoo app has an active data connection.

2. Pair your BIKE SHIFT to the Wahoo app.

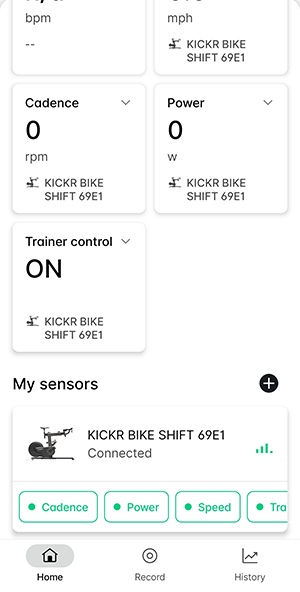

3. Once paired, navigate to Home > My sensors > BIKE SHIFT

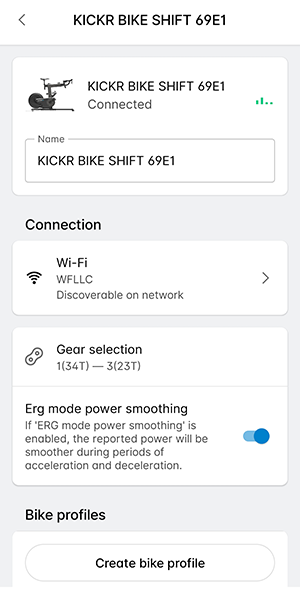

4. Scroll down to the Bike profiles section and select Create bike profile.

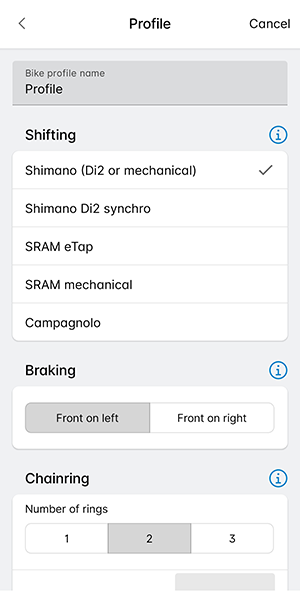

5. Select your preferred Shifting and Braking configuration.

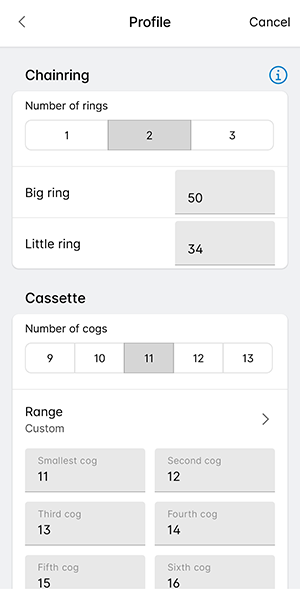

6. Select your preferred number of chainrings and chainring tooth count.

7. Select your preferred number of cassette cogs.

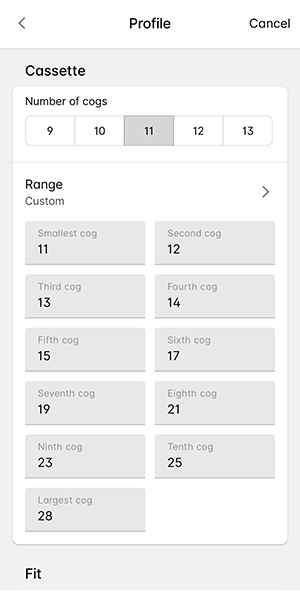

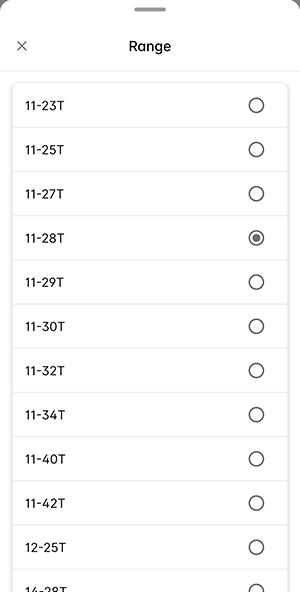

8. Select Range and select your preferred preset cog range or Custom to select the tooth counts of your preferred custom cog set.

9. Select the back button in the upper left hand corner. The selected settings are automatically saved.

Edit a shifter profile

1. Open Home > My sensors > BIKE SHIFT.

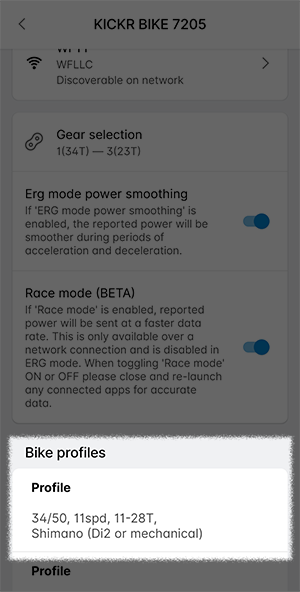

2. Scroll down to Bike profiles and select the profile you wish to edit.

3. Select your preferred Shifting and Braking configuration.

4. Select your preferred number of chainrings and chainring tooth count.

5. Select your preferred number of cassette cogs.

6. Select Range and select your preferred preset cog range or Custom to select the tooth counts of your preferred custom cog set.

7. Select the back button in the upper left hand corner. The selected settings are automatically saved.


Delete a shifter profile

1. Open Home > My sensors > BIKE SHIFT.

2. Scroll down to Bike profiles and select the profile you wish to delete.

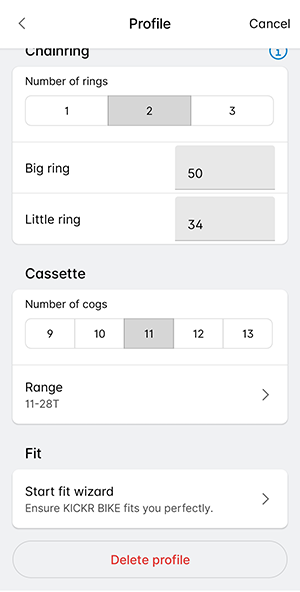

3. Scroll down to the bottom of the profile and select Delete profile.
