KICKR BIKEs support shifter configurations to match shifting and gearing options offered by Shimano, SRAM, and Campagnolo. Multiple shifter and gearing configurations can be created, stored, and edited in the Wahoo app, and the last selected profile will remain in use on the BIKE until overwritten.
KICKR BIKE 1/2 For KICKR BIKE SHIFT, see Shifter and button configuration for KICKR BIKE 1/2
For KICKR BIKE SHIFT, see Shifter and button configuration for KICKR BIKE SHIFT
Additionally, each BIKE has the capacity for some contextual app control. See Zwift controls for KICKR BIKEs / SHIFT.
Button locations
KICKR BIKEs have a total of 14 buttons on the shifters in the cockpit, in addition to the brakes.
Two shifter buttons on the outside of each brake lever
Used for Shimano and SRAM shifting configurations.
One multi-use button on the inside of each shifter body
Used for shifting with a Campagnolo shifter configuration OR
Used for steering in Zwift (not compatible with the Campagnolo shifting profile.)
4 multi-use buttons on top of each shifter body
Left and Right side simultaneously
- Front - Tilt down
- Rear - Tilt up
Left / right side - app contextual
For Zwift...
Left hood
-
LEFT
- Navigate left (menu/action bar) or
- Cycle the mini map (in ride)or
- Go left at an intersection (in ride)
-
UP
- Navigate up (menu/action bar) or
- Display or hide the action bar or
- Go straight at an intersection (in ride)
-
RIGHT
- Navigate right (menu/action bar) or
- Go right at an intersection (in ride)
-
DOWN
- Navigate down (menu/action bar) or
- Display the look-back camera (in a Zwift Event)
Right hood
- A - Select
- B - Back or Display Menu when in a ride or workout
- Y - Use a power up (in ride) or Skip an interval (in a workout)
- Z - Return a Ride On (in ride) or hold to give a Ride On to 5 riders in your vicinity
See Using Your Zwift Ride Controller for the current full range of controls set by Zwift.
For other apps, see the app's controller documentation.

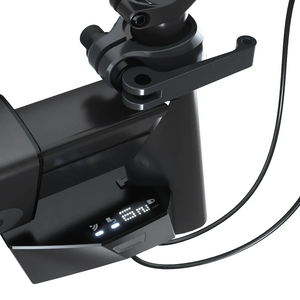

HCU button
BIKE v1 and v2 also have a single button on the head control unit on the drive (right) side of the bike.
- Tap to lock (secure manual only) or unlock (provide app control of) tilt functionality.
- Double tap to level the BIKE to neutral tilt position.
Available shifter configurations
-
Shimano
- Di2/Mechanical
- Di2 Synchro
-
SRAM
- eTap
- Mechanical
-
Campagnolo
- Mechanical
Create a shifter profile
1. Ensure the device running the Wahoo app has an active data connection.
2. Pair your BIKE to the Wahoo app.

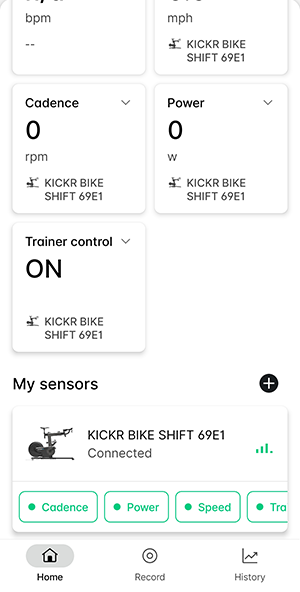

3. Once paired, navigate to Home > My sensors > BIKE

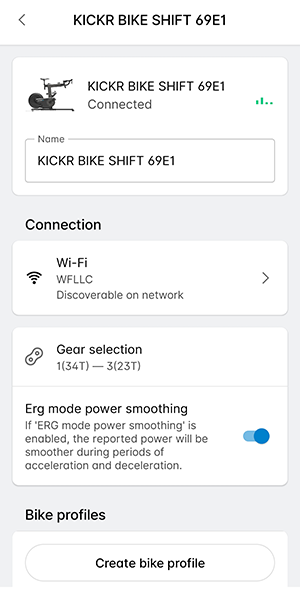

4. Scroll down to the Bike profiles section and select Create bike profile.

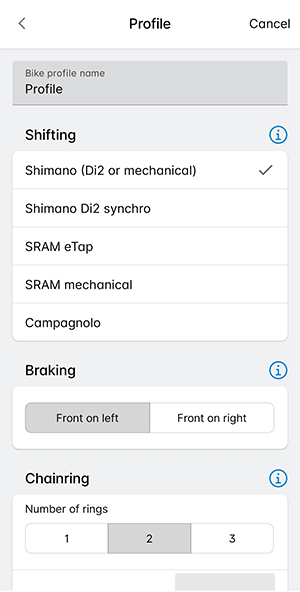

5. Select your preferred Shifting and Braking configuration.

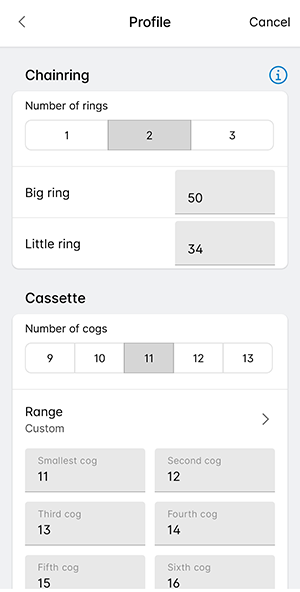

6. Select your preferred number of chainrings and chainring tooth count.

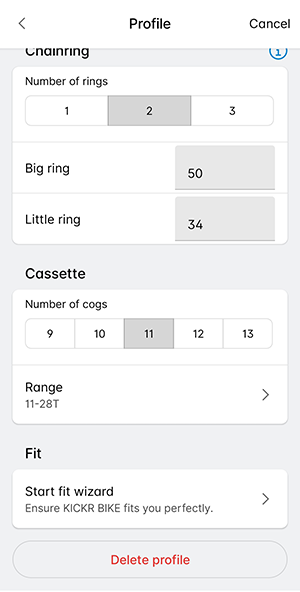

7. Select your preferred number of cassette cogs.

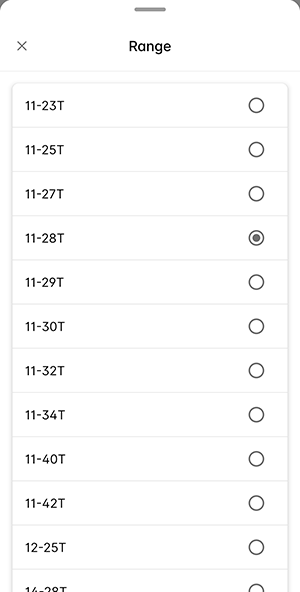

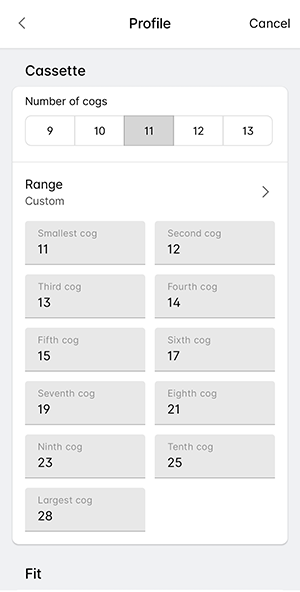

8. Select Range and select your preferred preset cog range or Custom to select the tooth counts of your preferred custom cog set.
9. Select the back button in the upper left hand corner. The selected settings are automatically saved.
Edit a shifter profile
1. Open Home > My sensors > BIKE.

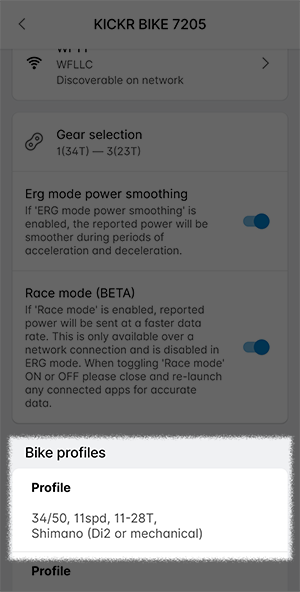

2. Scroll down to Bike profiles and select the profile you wish to edit.
3. Select your preferred Shifting and Braking configuration.
4. Select your preferred number of chainrings and chainring tooth count.
5. Select your preferred number of cassette cogs.
6. Select Range and select your preferred preset cog range or Custom to select the tooth counts of your preferred custom cog set.
7. Select the back button in the upper left hand corner. The selected settings are automatically saved.
Delete a shifter profile
1. Open Home > My sensors > BIKE
2. Scroll down to Bike profiles and select the profile you wish to delete.
3. Scroll down to the bottom of the profile and select Delete profile.
