Compatibility
Wahoo trainers
- KICKR v6 (2022)
- KICKR v5 (2020) on firmware 4.1.1 or newer
- KICKR MOVE (2023)
- KICKR ROLLR (2022)
- KICKR BIKE v2 (2022)
- KICKR BIKE SHIFT (2023)
- KICKR RUN (2024)
Apps
- Fulgaz - All platforms
- TrainerRoad - All platforms
- Wahoo SYSTM - MacOS and Windows only
- Zwift - All platforms
Requirements
- A Direct Connect Adapter
-
Any KICKR v6, KICKR MOVE, BIKE v2, BIKE SHIFT, or ROLLR, or a KICKR v5 on Firmware 4.1.1 or newer
-
Windows 10 version 19041 20H1 or newer, Windows 11, or a Mac
- Bluetooth® enabled on your selected device
Directions

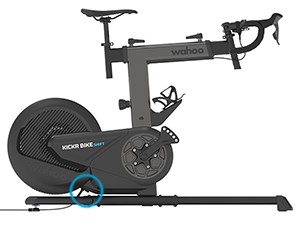

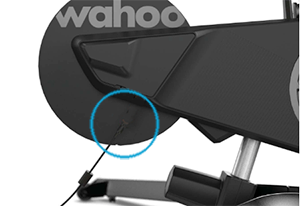

- Connect the direct connect adapter to the direct connect port, located on or immediately adjacent to the power dongle of the smart trainer or bike.
- Connect one end of an Ethernet cable into the adapter
- Connect the other end directly into your PC, router, or Wi-Fi access point, depending on your preferred setup.
Connecting Directly to a Windows PC/Mac
Direct Connect and Windows (firewall)

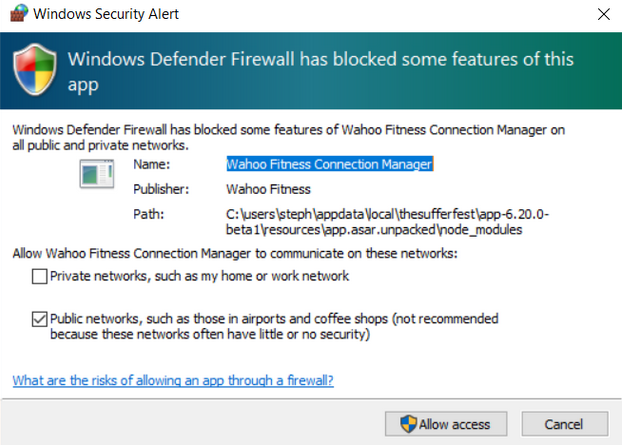

If you are connecting the Direct Connect Adapter directly to your Windows PC, be sure to allow the connection when prompted (typically when opening your selected app). The current working connection type is automatically checked when the prompt appears, but can be edited, if needed, via Control Panel > Windows Defender Firewall > windowsbtle.exe
Once the connection is allowed, the trainer should appear when searching for trainers in your selected app similarly to how it would on a wireless connection.
Direct Connect and Mac
If you are connecting your trainer to a Mac, the process is as easy as plug and play: simply connect the adapter to your trainer, then connect the Ethernet cable to your Mac and start your desired app to find your trainer listed.
Connecting through a Router or other Network
Simply plug your direct connect adapter into your KICKR and connect the Ethernet cable to your router and it will be found on your PC within your selected app, similarly to how it would be found wirelessly.
Note: The KICKR Direct Connect Adapter is typically assigned an IP address automatically via DHCP. However, it's important to note that the adapter should be on the same subnet as the PC being used (example: if your PC has the address 192.168.0.100, the Direct Connect Adapter should be set to 192.168.0.xxx in order to be recognized on the PC). Most users should not have an issue with this, but there may be cases when running range extenders (or multiple routers) where the range extender is functioning in router mode instead of access point mode on a different subnet.
Other Important Notes
Direct Connect and 3rd Party Firewalls
3rd party firewalls may block traffic to the adapter including, Norton, McAfee, and Avast. Be sure to disable your 3rd party firewall or allow traffic on port 36866. Follow the instructions for your firewall to allow traffic on this port for the adapter to work properly.
Direct Connect and Bluetooth
Direct Connect requires Bluetooth® to function and uses the Bluetooth® protocol over TCP/IP. Your PC/MAC must have Bluetooth® drivers and must be enabled in the OS and App. Most computers in the past 7 years should have Bluetooth® by default, but a Bluetooth® adapter may be required if not.
Direct Connect and Multiperipheral
The Direct Connect Adapter is a 1:1 connection. It will only work in 1 app at a time. Always be sure to close any previously connected apps to ensure visibility with new apps. Note that the default Bluetooth® connection will remain available for other apps to use.
