Identify Speedplay pedals

Prior to Wahoo's acquisition of the Speedplay brand, Speedplay had an expansive lineup. Here are images and descriptions to distinguish current and legacy pedals.  For current and legacy pedal and cleat compatibility, please see the Pedal & Cleat Compatibility Guide.


Wahoo power pedals [ POWRLINK Zero]

pedals-PLZD-300.png pedals-PLZS-300.png blank300x200.png
POWRLINK Zero Dual POWRLINK Zero Single

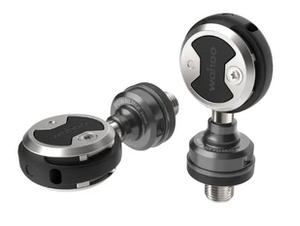

POWRLINK Zero Dual

  • Power pod on left and right pedal
  • 56mm stainless steel spindle

POWRLINK Zero Single

  • Power pod on left pedal only
  • 56mm stainless steel spindle



Wahoo Speedplay pedals

All Wahoo Speedplay pedals have a Wahoo logo etched into the pedal body.

Dual-sided

pedals-wahoo-nano-300.png pedals-wahoo-zero-300.png pedals-wahoo-comp-300.png
Speedplay Nano Speedplay Zero Speedplay Comp


Speedplay Nano

  • Black body
  • Duller titanium spindle
  • 53mm spindle

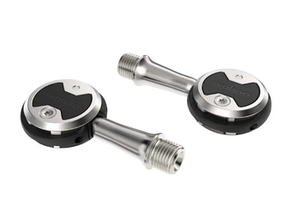

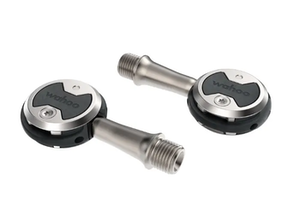

Speedplay Zero

  • Black body
  • Brighter stainless steel spindle
  • Stock 53mm spindle, Options for 56, 59, and 65mm

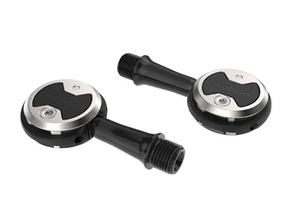

Speedplay Comp

  • Black body
  • Painted black Chrome-moly steel spindle
  • 53mm spindle



Single-sided

pedals-wahoo-aero-300.png blank300x200.png blank300x200.png

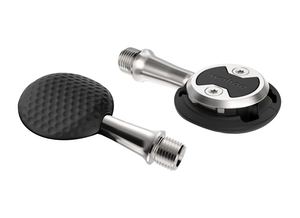

Speedplay Aero


Speedplay Aero

  • Single-sided pedal with aero dimples on the bottom

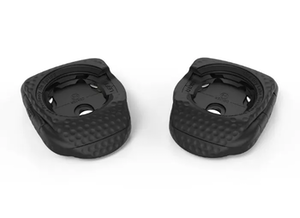

Wahoo Speedplay Cleats

cleats-standard-tension-300.png cleats-easy-tension-300.png blank300x200.png
Standard Tension Cleats Easy Tension Cleats


Standard Tension Cleats

  • Black cleat covers

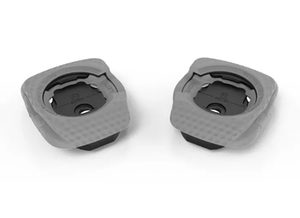

Easy Tension Cleats

  • Gray cleat covers

Legacy Speedplay pedals [all pedals discontinued]

Road dual-sided

pedals-zero_white-legacy-300.png pedals-ULA-Legacy-300.png pedals-X-Series-300.png
Zero Light Action / Ultra Light Action X Series [1/2/5]
pedals-pave-300.png blank300x200.png blank300x200.png
Pave

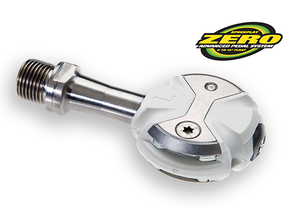

Zero

  • 4x widening grooves from center to edge of pedal body
  • Black, red, white, blue, silver, orange, celeste, pink, green bodies
  • Options for stainless steel spindles (50, 53, 56, 59, and 65mm), titanium (50mm), and Chrome-moly

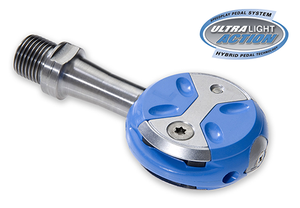

Light Action/Ultra Light Action

  • 4x dimples from center to edge of pedal body
  • Black, red, pink, sky blue, celeste bodies
  • Options for stainless steel, titanium, and Chrom-moly spindles
  • Many body colors

X Series

  • Flat body surface
  • Options for
    • Black body with titanium spindle [X1]
    • "Natural" body with stainless spindle [X2]
    • Blue body with painted black Chrome-moly spindles

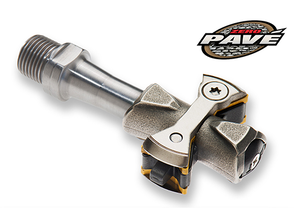

Pave

  • Cross-shaped body
  • Options for stainless steel or titanium spindles



Road single-sided

pedals-zero-aero-legacy-300.png blank300x200.png blank300x200.png

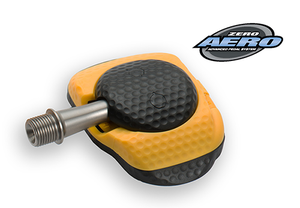

Zero Aero

Zero Aero

  • Single-sided
  • Black bodies
  • Options for stainless steel (53mm) or titanium (50mm) spindles



All-road

pedals- frog-300.png pedals-Syzr-300.png blank300x200.png
Frog SYZR

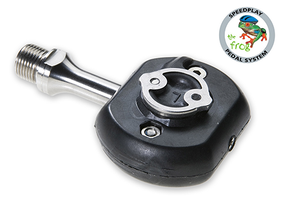

Frog

  • Black resin body with raised steel interface
  • Options for stainless steel, titanium, and Chrome-moly spindles

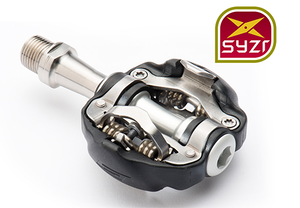

SYZR

  • black resin body with a spring loaded clamp
  • options for stainless steel, titanium, and Chrome-moly spindles



Flat

pedals-brass_knuckles-300.png pedals-drillium-300.png blank300x200.png
Brass Knuckles Drillium

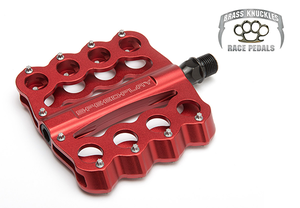

Brass Knuckles

  • rounded semi-angular front/rear edge
  • red, black, gold, and silver bodies
  • painted black chrome-moly spindles

Drillium

  • flat front/rear edge
  • black body
  • painted black chrome-moly spindles
