TRACKR SPEED Information and Setup

Download the Wahoo app

The Wahoo app is designed to keep your TRACKR SPEED sensor up to date and leverage your smartphone during running, cycling, or other workouts, delivering data-driven power that fuels your training and fitness goals. Get the app now to update your TRACKR SPEED and reach your personalized fitness goals.

Apple App Store | Google Play Store

Technical Specifications

Weight: .46 oz (13 g) with strap
Battery: CR2032 Coin Cell
Battery Life: Over 200 Active Hours
Water Rating: IPX7 (up to 1 meter for 30 minutes)
Maximum Hub diameter: Fits up to 40mm (1.57") diameter hubs
- TRACKR SPEED is recommended for road, gravel, and XC MTB hubs. Fitment to oversized Enduro hubs may be limited.
Connectivity: ANT+ and and a single Bluetooth connection
Supported Devices: Cycling computers, fitness watches, and iOS, Android, MacOS, and Windows-based apps,
- Wahoo app compatible devices

In the box

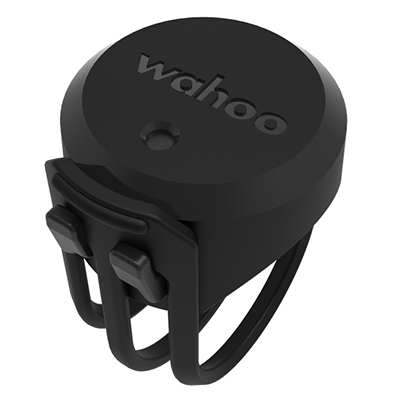

TRACKR Speed Sensor
Quick Start Guide and Important Product Information

Quick Start Guide

Download the TRACKR SPEED Quick Start Guide (QSG).

Wake TRACKR SPEED for first use

To wake the sensor for first use, spinning the wheel of the bicycle will activate the accelerometer of the TRACKR SPEED. Once the sensor is awake, the blue LED will blink slowly and will flash quickly before going solid once the sensor is successfully paired to an app or device.

LED Indicators

Pairing

Blue LED slow flash: sensor is awake and searching for a connection
Blue LED quick flash: connecting to a device
Blue LED solid: connected to the device

LED operation shuts off 30 seconds after waking to conserve battery.

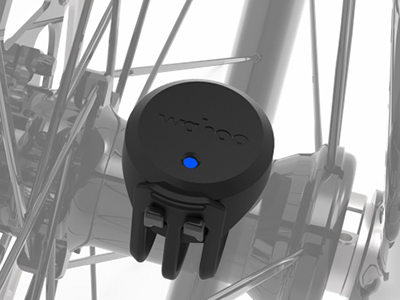

How to mount TRACKR SPEED

The TRACKR SPEED ships fully assembled and ready to mount on the hub of your front or rear wheel, depending on your preference.

While holding the sensor pod in place on your selected hub, gently stretch the the rubber strap around the hub to secure it around bottom two hooks on the the opposite side of the pod.

Using TRACKR SPEED

Wake the TRACKR Speed by spinning the wheel of the bicycle will activate the accelerometer that will wake the sensor, once awake, TRACKR SPEED will broadcast data to any recording apps/devices the TRACKR SPEED to which the sensor is paired.

To pair the TRACKR SPEED sensor to a third party app or device, see that app/device's instructions for sensor pairing.

Care and Storage

The TRACKR SPEED does not require maintenance though should be kept free of dirt and debris though otherwise can remain in place once installed on your bicycle.

Do not use strong chemicals or solvents on the strap or sensor pod as these may reduce product longevity.

Troubleshooting

If the sensor is unresponsive (no LEDs)...

Before first use --

To wake the sensor for first use, spinning the wheel of the bicycle will activate the accelerometer of the TRACKR. Once the sensor is awake, the blue LED will blink slowly and will flash quickly before going solid once the sensor is successfully paired to an app or device.

Any other time --

Confirm unit is awake and responsive by spinning the wheel of the bicycle to activate the accelerometer of the TRACKR SPEED, once awake the blue LED will blink slowly and will flash quickly before going solid once the sensor successfully pairs to an app or device.
Check the battery connection. While the battery is removed, flex the metal prongs that connect to the battery by pressing them towards the middle of the sensor pod. If the prongs are pushed down too far, this can prevent a strong connection with the battery.
If unresolved, please try replacing the battery - data can fail to transmit properly on a low battery. Please note that Wahoo does not recommend the use of any battery with a "bitter/child deterrent" coating (specifically, but not limited to those made by Duracell). These batteries are not approved for use Wahoo devices and may only be used at your own risk should you choose to use them. This coating has the potential to reduce battery performance and may degrade sensor functionality. Wahoo recommends using Panasonic coin-cell batteries or another name brand for optimal performance and tracking.
If unresolved/unavailable, contact our support team with
1. a description of the issue and what you've tried,
2. your proof of purchase or Wahoo order number,
3. your contact phone number
4. your email address, and
5. your preferred shipping address

If you do not see the sensor when attempting to pair

Please make sure that the TRACKR SPEED is not already paired under your phone's bluetooth settings, this can prevent other apps from pairing to the TRACKR SPEED, please see the links below for iOS and Android bluetooth troubleshooting:

iOS Bluetooth Troubleshooting

Android Bluetooth Troubleshooting

Check for Interference

If none of these resolves your issue and the LEDs are still functioning, you may be experiencing signal interference which can be caused by the following:

Previously paired apps or devices: The most common cause of interference is a previously paired app or device. It's important to unpair your sensor from all other apps and devices (including previously paired computers, phones, watches, or the ELEMNT, etc.), force stopping apps or shutting down additional devices before pairing with another.
Physical distance: Signal strength degrades as distance increases. For best results, keep your device less than 5 feet from your TRACKR SPEED sensor.
Wireless signals: Any devices that transmit wireless signals or electromagnetic fields can cause interference, especially these:
- Wireless routers
- Wireless or Bluetooth headphones or speakers
- Bike lights
- Video recording devices (GoPro's, etc)
- Wireless video receivers or transmitters (Chromecast, AirPlay, Roku, etc.)
- Fans (especially large ones): avoid placing between your device and TICKR
- Cordless home phones
- Satellite or cable boxes
- Microwave ovens
- Power sources (power lines, boxes, lines in walls)
- Wireless mice/keyboards
- Certain TVs (especially WiFi Smart TVs) or monitors
- Anything else that can transmit wireless signals, including radios and baby monitors
Physical barriers: Walls, metal desks, counters, and even the human body can degrade signal quality.

If any of these are affecting your signal, try uninstalling, disabling, or shutting down offending devices. Alternatively, try relocating the sensor further from the source of interference or to a new environment completely.

If you're still having trouble, please submit a support request and we'll be happy to assist you further.
