ELEMNT ACE pages

When an ELEMNT ACE is turned on by pressing and holding the button on the left of the unit, it will warm up to the Ready to Ride dashboard.

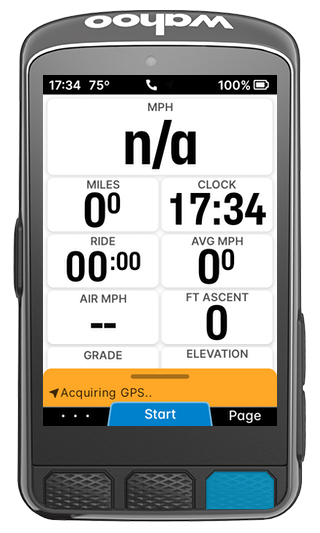

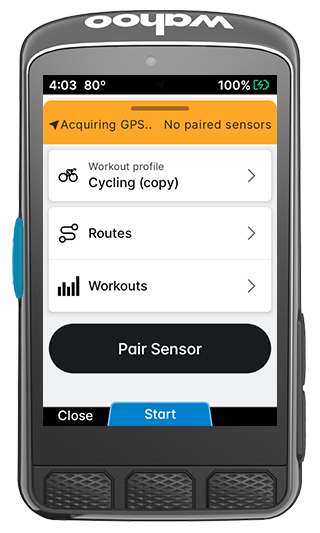

Ready to Ride

For more details on the Ready to Ride dashboard, see Ready to Ride dashboard for ELEMNT ACE.

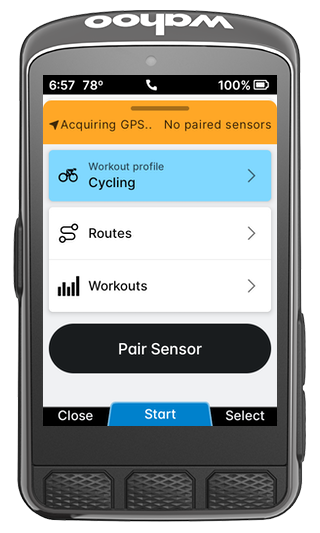

Settings pages

From the Ready to Ride dashboard, you can access the Settings pages by tapping the button on the left side of the unit. For more details on the various Settings pages, see ELEMNT ACE Settings. Within the Settings pages, swipe left or right (or use the front right Page button) to navigate between pages.

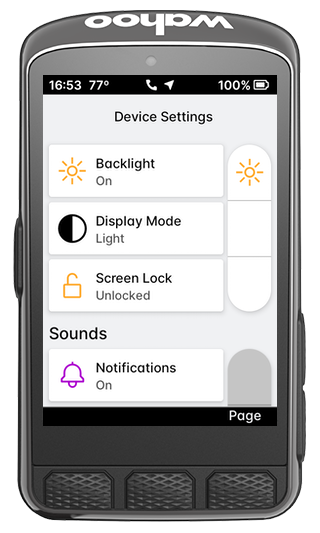

Device Settings

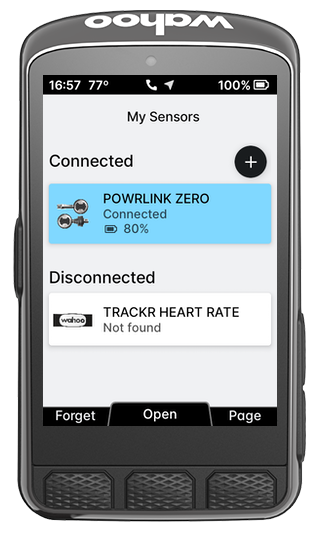

My Sensors

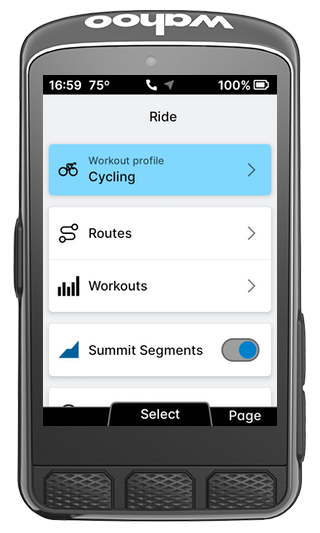

Ride

For more details on the various Settings pages, see ELEMNT ACE Settings.

Ride data pages

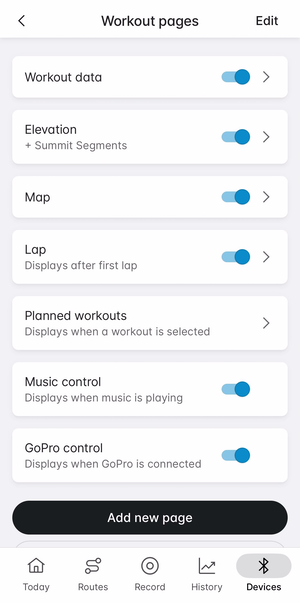

From the Ready to Ride dashboard, you can access the basic workout data page, or whatever other data page you have placed first in the page stack by Customizing workout profiles and pages for ELEMNT ACE. From that first data page, you can swipe left or right or use the front right Page button to access the other data pages. The default page stack (how pages appear in left to right order when the Page button is pressed) is below.

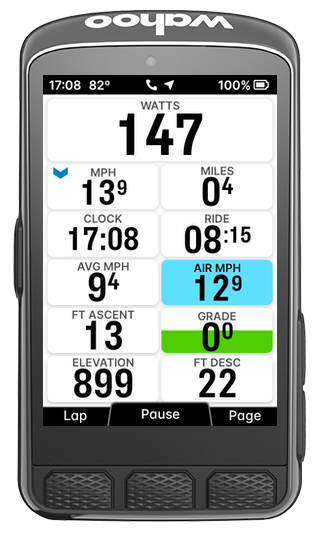

Workout data

11 customizable data fields

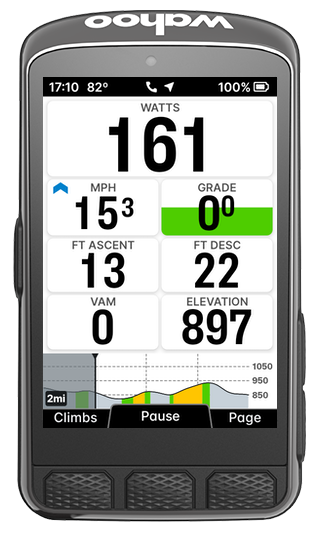

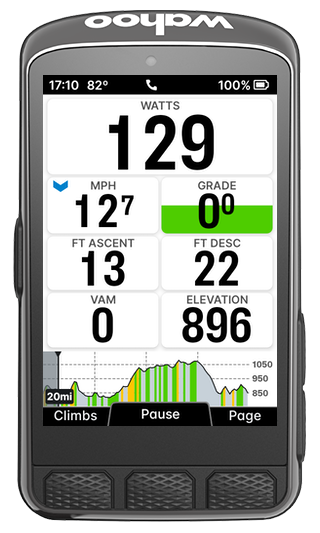

Elevation

Elevation profile + 7 customizable data fields
By default, the elevation profile shows 2 mi / 2 km
The elevation profile can be toggled between 2 mi / 2 km and Total distance when recording a ride and additionally to 20 mi / 20 km and distance To Go when following a route.

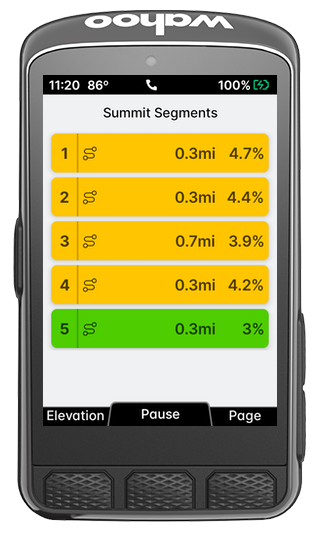

Summit Climbs / Segments

The Climbs page is accessible from the front left button on the Elevation page.
The Summit Segments page appears when Summit Segments are enabled, and you are within range of a climb.

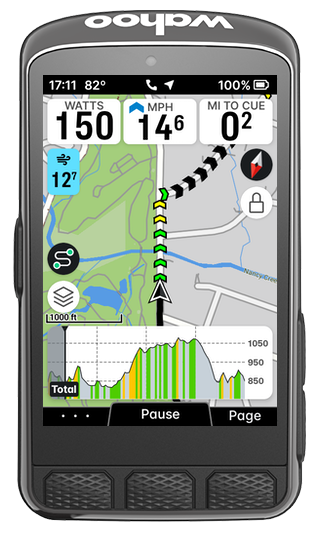

Map

Map, optional elevation profile, and up to 6 customizable data fields
The elevation profile will show the next 2 mi / 2 km in front of you without a route loaded, and the total route's elevation profile when a route is loaded.
