Customize Pages on an ELEMNT GPS Computer

Most pages (screens) of an ELEMNT GPS Computer contain customizable data fields, meaning that data fields can be added, changed, moved, or removed.

Requirements

• An ELEMNT, BOLT, or ROAM computer
• A phone capable of running the current version of the ELEMNT app
• The ELEMNT app for iOS or Android
• Phone Bluetooth enabled
• The ELEMNT computer actively connected to the ELEMNT app

Customizable pages

Persistent pages

• Workout Data
• Elevation (Summit Segments > Elevation
• Map

Contextual pages

• Lap data
  • appears after a first lap has been created
• Summit Segments Live (ROAM v1/v2, BOLT v2 only, Summit Segments > Summit Segments Live)
• KICKR control
  • appears if KICKR mode is enabled on the computer
• Planned workouts
  • appears if a planned workout is loaded
• Strava Live Segments (requires active paid Strava subscription)

For more details on page content, see ELEMNT GPS computer Pages.

Customize a page

Access the page customization function

Navigate in the ELEMNT app to the Settings tab > CUSTOMIZE - Pages

Add a data field

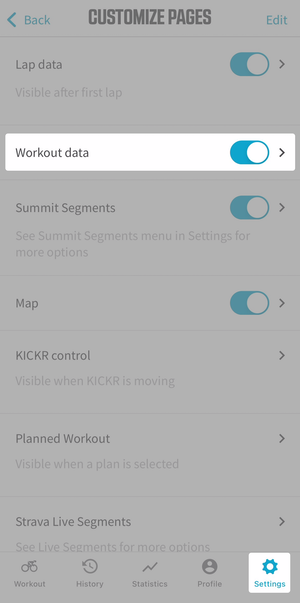

1. Select the page you wish to customize.

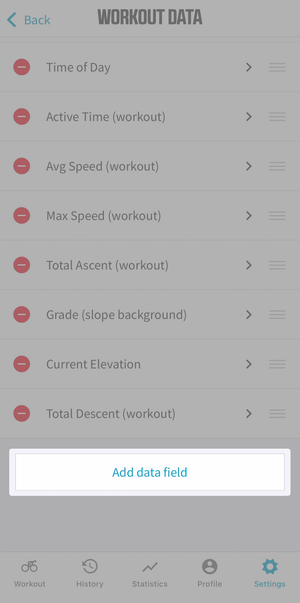

2. iOS - Scroll to the bottom of the page and select the Add data field button.
   1. Select the data type you wish to use.
   2. Select the data type you wish to use.
   3. The new data field you selected will appear. If the maximum data fields for that page were already present, one will be replaced.

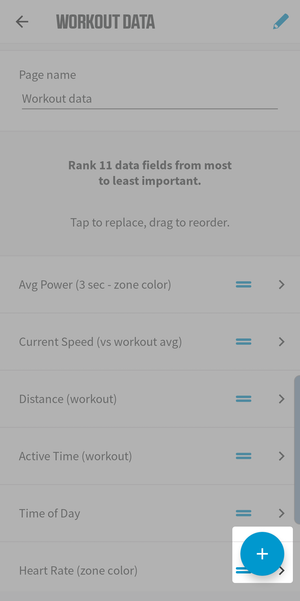

3. Android - Select the (+) [add] button
   1. Select the data type you wish to use.
   2. Select the data type you wish to use.
   3. The new data field you selected will appear. If the maximum data fields for that page were already present, one will be replaced.

Change a data field

1. Select the page you wish to customize.

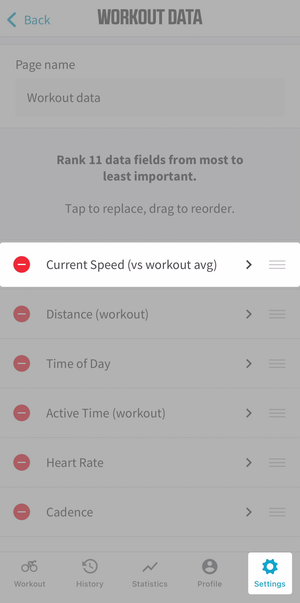

2. Select the data field you want to change.

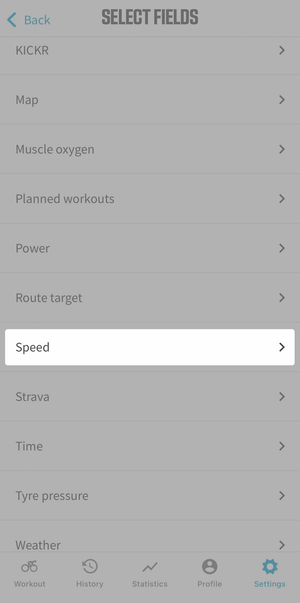

3. Select the data type you wish to use.

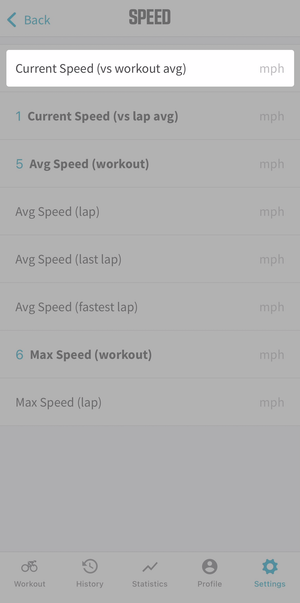

4. Select the data sub-type you wish to use.
5. The new data field you selected will appear in place of the previous one.

Move a data field

1. Select the page you wish to customize.

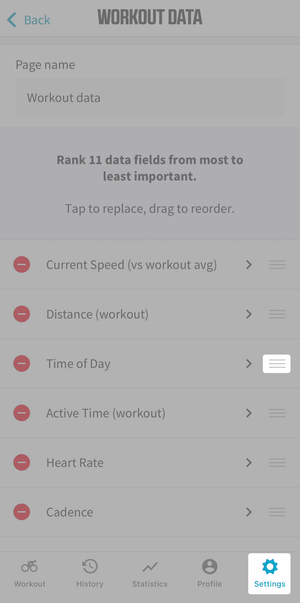

2. Press the three (iOS) or two (Android) horizontal lines  at the right edge of the line item for the data field you want to change and drag upward or downward to the relative position where you wish to move the field.

Remove a data field

1. Select the page you wish to customize.

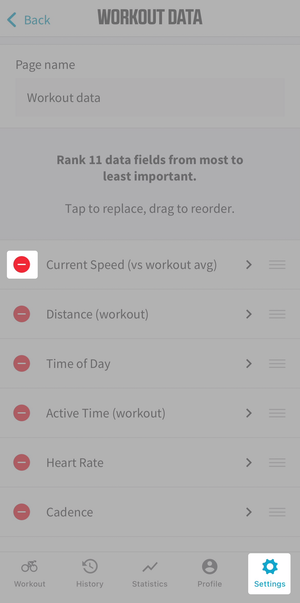

2. iOS - Select the red delete icon to the left of the data field you want to remove.

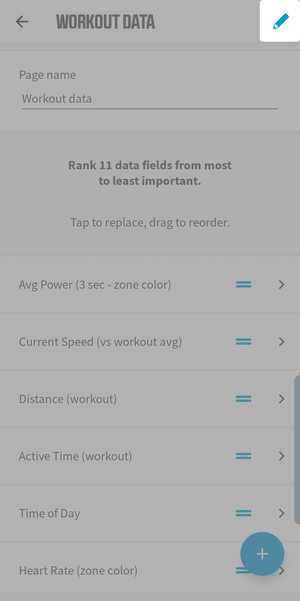

3. Android - Select the [edit] icon.

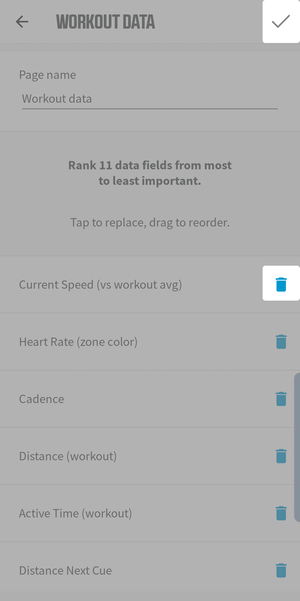

   1. Select the delete icon to the right of the data field you want to remove.
   2. Select the check button in the upper right corner to confirm.

Non-customizable pages / components

Some pages, like the Elevation and Map pages contain non-customizable components, like the elevation profile and map graphics. Each page offers at least two customizable data fields, but the layout and core component that defines that page cannot be changed, moved, or removed.

Additionally, any page other than the Workout data page cannot be duplicated. Custom pages are a duplicate of the primary workout data page.

Data field type options

Data fields exist for values related to the following concepts. For a complete list, follow the steps above to see the list in the ELEMNT app.

• Battery
  • ELEMNT computer and phone battery
• Body Temperature
  • requires a CORE body temp sensor
• Cadence
  • requires a cadence sensor or crank/pedal power meter
• Calories
  • requires power meter or heart rate monitor
• Climbing
  • includes fields related to Elevation and Summit Segments pages
• Distance
• E-Bike
  • requires a compatible LEV
• Gear selection
  • requires a compatible electronic drivetrain
• Heart rate
  • requires a heart rate monitor
• KICKR
  • requires a KICKR trainer
• Map
  • some fields require an active route loaded
• Muscle oxygen
  • requires a compatible muscle oxygen sensor
• Planned workouts
  • requires an active loaded planned workout
• Power
  • requires a power meter or KICKR trainer
  • some fields require a dual-sided or Pioneer power meter
• Route Target
  • requires a BestBikeSplit route loaded
• Speed
• Strava
  • Requires Strava Live Segments
• Time
• Tyre pressure
  • requires a TyreWhiz pressure sensor
• Weather (Temperature)
  • temperature data
• Workout
  • Lap related data
